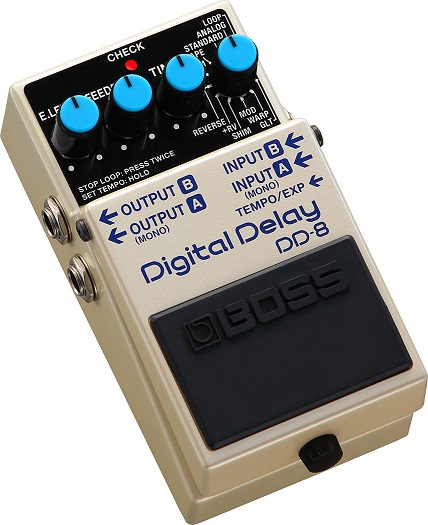

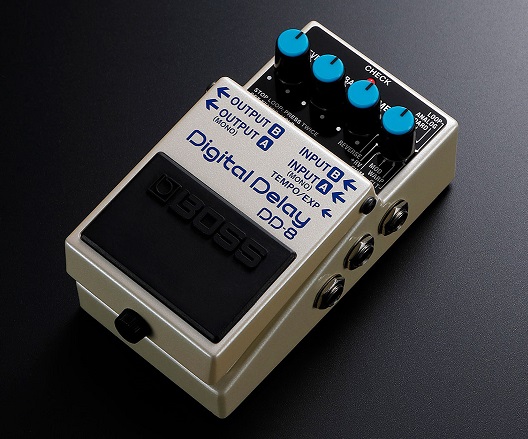

Boss DD-8 Digital Delay

Boss DD-8 Digital Delay

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls:
  • MODE knob
  • TIME knob
  • FEEDBACK knob
  • E.LEVEL(Effect Level) knob

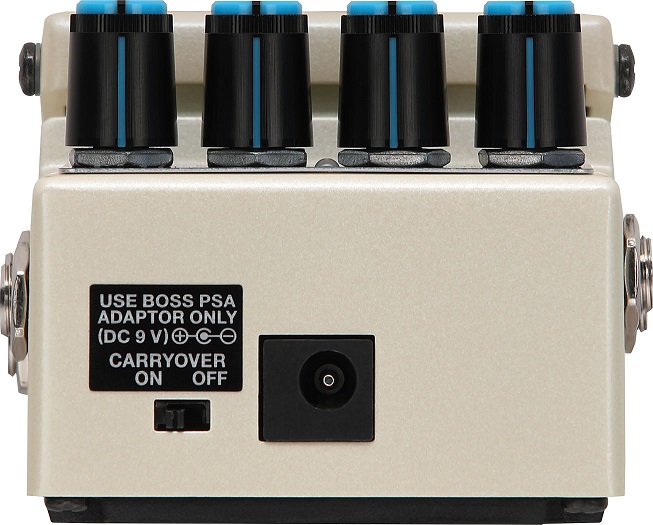

  • CARRYOVER switch
  • Pedal switch
• Indicator: CHECK indicator (Used for indication of check battery)
• Connectors:
  • INPUT-A(MONO)/INPUT-B jack: 1/4-inch phone type
  • OUTPUT-A(MONO)/OUTPUT-B jack: 1/4-inch phone type
  • TEMPO/EXP jack: TRS 1/4-inch phone type
  • DC IN jack
• Power Supply:
  • Alkaline battery (9 V, 6LR61)
  • AC adaptor (PSA series: sold separately)
• Current Draw: 100 mA
• Expected battery life under continuous use: Alkaline: Approx. 3.5 hours
• Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Dry battery (9 V, 6LR61)
• Options (sold separately):
• AC adaptor: PSA series
• Footswitch: FS-5U, FS-6, FS-7
• Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
• Size: 73 x 129 x 59 mm
• Weight: 440 g
