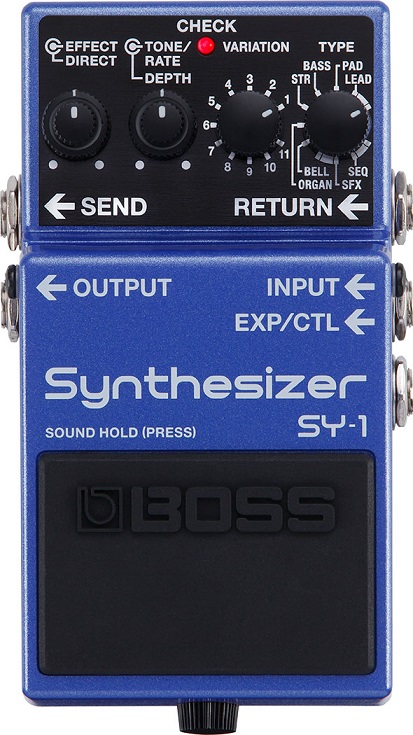

Boss SY-1 Synthesizer

Boss SY-1 Synthesizer

• Nominal Input Level: INPUT, RETURN: -20 dBu
• Input Impedance: INPUT, RETURN: 2.2 M ohms
• Nominal Output Level: OUTPUT, SEND: -20 dBu
• Output Impedance: OUTPUT, SEND: 1 k ohms
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls:
  • Pedal switch
  • GUITAR/BASS switch
  • TYPE knob
  • VARIATION knob
  • TONE knob
  • DEPTH knob
  • EFFECT knob
  • DIRECT knob
• Indicator: CHECK indicator (Serves also as battery check indicator)
• Connectors:
  • INPUT jack: 1/4-inch phone type
  • OUTPUT jack: 1/4-inch phone type
  • SEND jack: 1/4-inch phone type
  • RETURN jack: 1/4-inch phone type
  • EXP/CTL jack: Stereo 1/4-inch phone type
  • DC IN jack
• Power Supply: Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
• Current Draw: 115 mA
• Expected battery life under continuous use: Alkaline: Approx. 2 hours
• Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9 V, 6LR61)
• Options (sold separately): AC adaptor: PSA series, Footswitch: FS-5U, Dual footswitch: FS-6, FS-7, Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
• Size: 73 x 129 x 59 mm
• Weight: 0,45 kg
